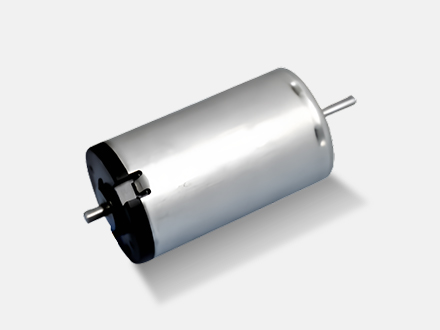

BM2238—输出功率：1W-6W

性能参数PREFORMANCE PARAMETER：

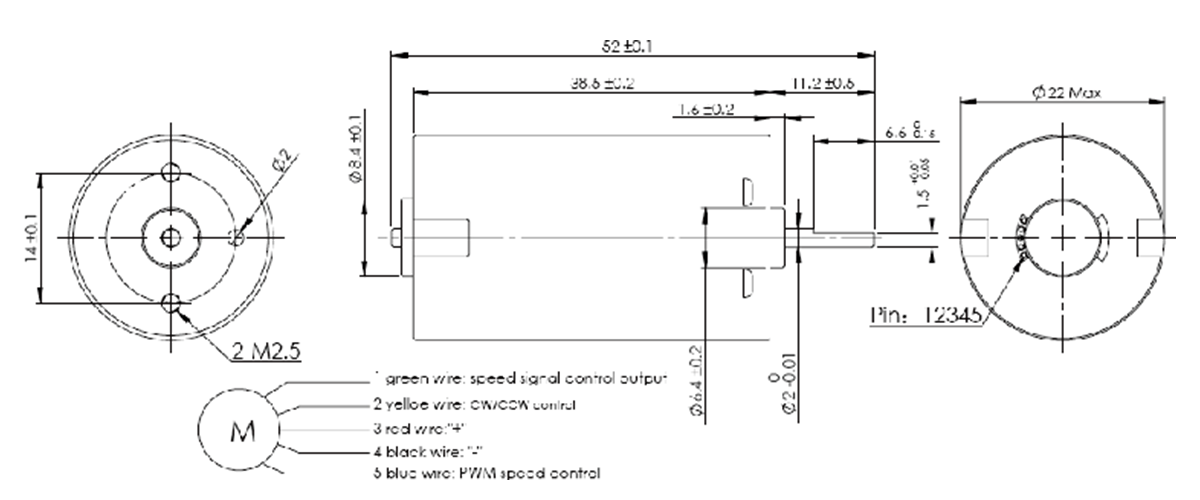

外形图OUTLINE DRAWING：

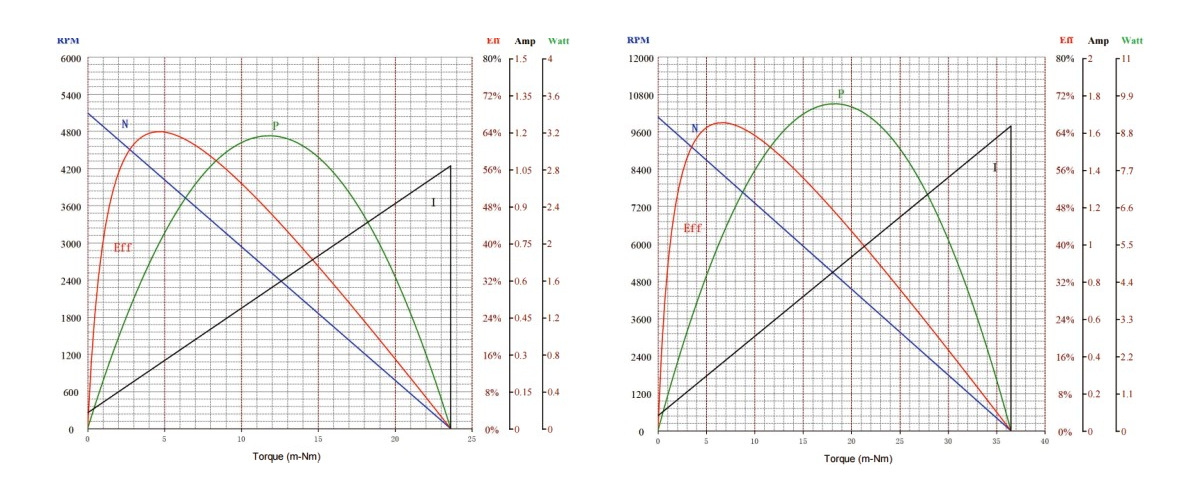

性能曲线PERFORMANCE CURVE：

直流⽆刷电机典型应⽤BRUSHLESS DC MOTOR-TYPICAL APPLICATION ：

特征：

双转向，信号功能，锁定保护，⽆级调速，低噪⾳，低电磁⼲扰，超⻓寿命3000-15000⼩时。

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs

注意：

可定制，电压、扭矩、转速、电流、功率、输出轴的特征和尺⼨等

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
